In modern buildings, the concept of comfort represents a holistic experience, far beyond thermal parameters such as temperature, humidity, and air velocity. The most critical, yet often least noticed, component of this experience is the acoustic character of the space. Acoustics, a fundamental engineering criterion determining the quality of use of a space, is the “invisible” performance indicator of air conditioning systems.
Especially in offices where focus is essential, conference rooms where information is shared, or libraries where absolute silence should prevail, noise is not just a source of discomfort but also an obstacle that directly reduces productivity. Any hum, hiss, or vibration originating from HVAC systems and not controlled during the design phase can overshadow the architectural success of the space and create psychological fatigue for the user.
The primary goal of acoustic design is to keep air conditioning noise at levels that do not interfere with the intended use of the space and to optimize sound quality in accordance with standards. Therefore, the correct air conditioning strategy is not just to condition the air, but to deliver it to the space at a flow rate that meets acoustic criteria.
The Foundation of Acoustic Comfort: NC and RC Criteria
Acoustic design is based on internationally accepted curves determined by the function of the space. The most commonly used are NC (Noise Criteria) and RC (Room Criteria) curves:
Libraries and Concert Halls (NC 20 – 25): This level, where the human ear perceives the closest to absolute silence, is a necessity for high-sensitivity areas. In libraries, where even the slightest mechanical click can be distracting, deep focus must be maintained, and in concert halls, the finest nuances of music must be heard. To achieve this, the air conditioning system aims to remain below these limits, making its presence completely unnoticeable.
Offices and Meeting Rooms (NC 30 – 35): In the business world, productivity is directly related to the capacity for focus and speech privacy. Background noise exceeding NC 35 reduces speech intelligibility (STI), causing employees to raise their voices to understand each other and leading to significant mental fatigue by the end of the day. In an ideal design, this balanced range is preferred, where the ventilation system creates a slight “masking” effect, blocking whispers from the next desk but not disrupting main communication.
Social Areas and Lobbies (NC 40 – 45): In areas with high human traffic, the goal is not absolute silence but rather to provide “acoustic privacy.” A very quiet lobby or restaurant environment would cause every private conversation to be heard throughout the space. Therefore, controlled background noise in the NC 40-45 range acts as an “acoustic shield” that softens conversations and preserves privacy.
These criteria control not only the intensity of sound but also its quality. For example, a low-frequency rumble or a high-frequency hiss from the system can cause significant discomfort to the user, even if the total decibel level is low.
Sound Transmission Paths in Air Conditioning Systems
Noise in HVAC systems propagates from the source to the space through complex and multifaceted transmission paths. Each transmission mechanism in this process requires a unique engineering approach and control strategy. The most fundamental components of these paths, evaluated as a system, are:
Via Air Ducts (Airborne): This is when fan noise follows the airflow inside the duct and reaches the space directly through the diffusers. This transmission path is the main sound source of the system and is directly affected by the choices made at the diffuser throats.
Duct Breakout: This is when noise leaks out through the duct walls into the plenum space, and from there into the room. This situation is more common, especially in rectangular and flexible ducts, and becomes a more critical problem as the duct surface area increases.

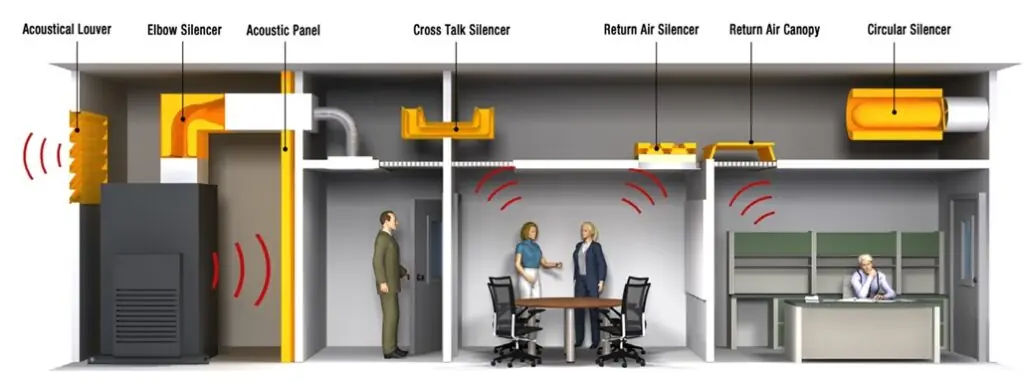

Cross-talk: This is the transmission of sound from one room to another via the duct system. The use of “cross-talk silencers” is essential at this point, especially as it leads to privacy issues between adjacent meeting rooms or executive offices.
Aerodynamic Noise and Turbulence Effect
Noise generated by airflow itself typically results from physical limitations and design flaws in the system:
Air Velocity and Duct Sizing: Air velocity and noise level are logarithmically related; doubling the velocity causes approximately an 18-decibel increase in sound level. Sizing ducts generously is the most fundamental way to minimize noise by reducing turbulence.
Dampers and Elbows: Dampers used to balance airflow, especially when approaching a fully closed position, narrow the airflow, generating high-frequency turbulence noise (hiss). Similarly, sharp turns and elbows within the duct disrupt laminar airflow, leading to the formation of “regenerated noise.”
Solution Strategies and the Importance of Early Design
Noise control is a technical and economic necessity that must be addressed in the earliest stages of a project.
Velocity Management and Cross-Section Optimization: Sizing ducts and air distribution elements within velocity limits appropriate for the targeted NC curves of the space prevents noise at its source. Keeping air velocity within design limits reduces turbulence, preventing the logarithmic increase of noise.

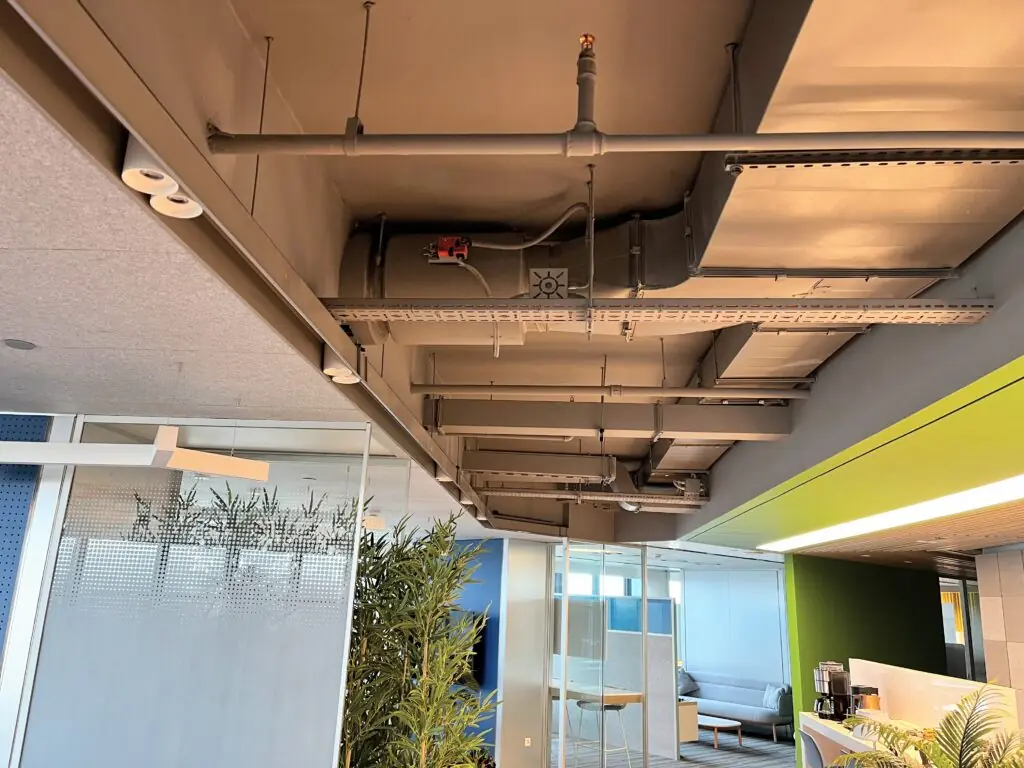

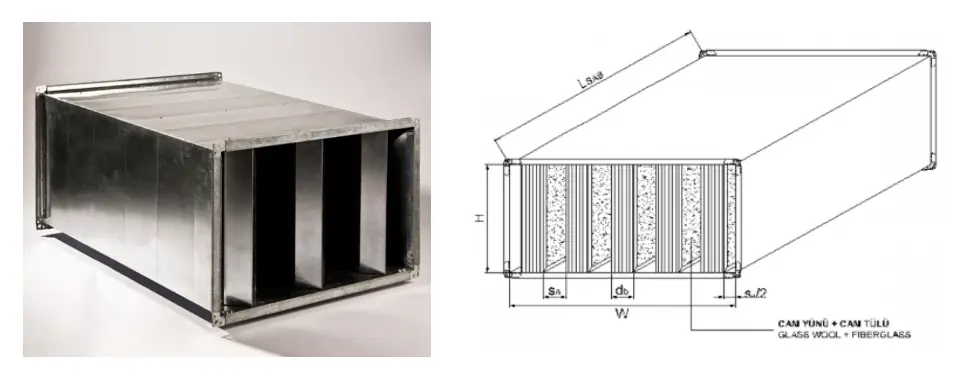

Acoustic Insulation and Material Selection: Lining ducts with sound-absorbing materials internally prevents sound waves from being transmitted through reflections. Additionally, flexible connectors and anti-vibration devices should be used to stop the transmission of structural noise and vibrations.
Silencer Optimization and Life Cycle Cost: Properly sized and positioned silencers ensure that targeted NC values are achieved without compromising energy efficiency. Incorrectly designed or retrofitted silencers create additional pressure losses in the system, causing fans to consume more energy and increasing the building's total operating cost (LCC).
In air conditioning systems, acoustic performance is an inseparable whole with thermal comfort, aesthetics, and energy efficiency. The primary engineering goal is not just to reduce noise in a space, but to ensure sound quality and level appropriate for the function of that space. A design strategy based on internationally accepted NC and RC standards, with proper management of air transmission paths and flow velocities, prevents noise problems at their source before they even arise.
This approach maximizes user productivity and comfort in the space, while preventing acoustic problems and additional costs that may be encountered throughout the system's operating life. Considering acoustics as a priority when designing the air conditioning infrastructure of buildings is the key to creating not only silent but also peaceful and high-quality living spaces.
